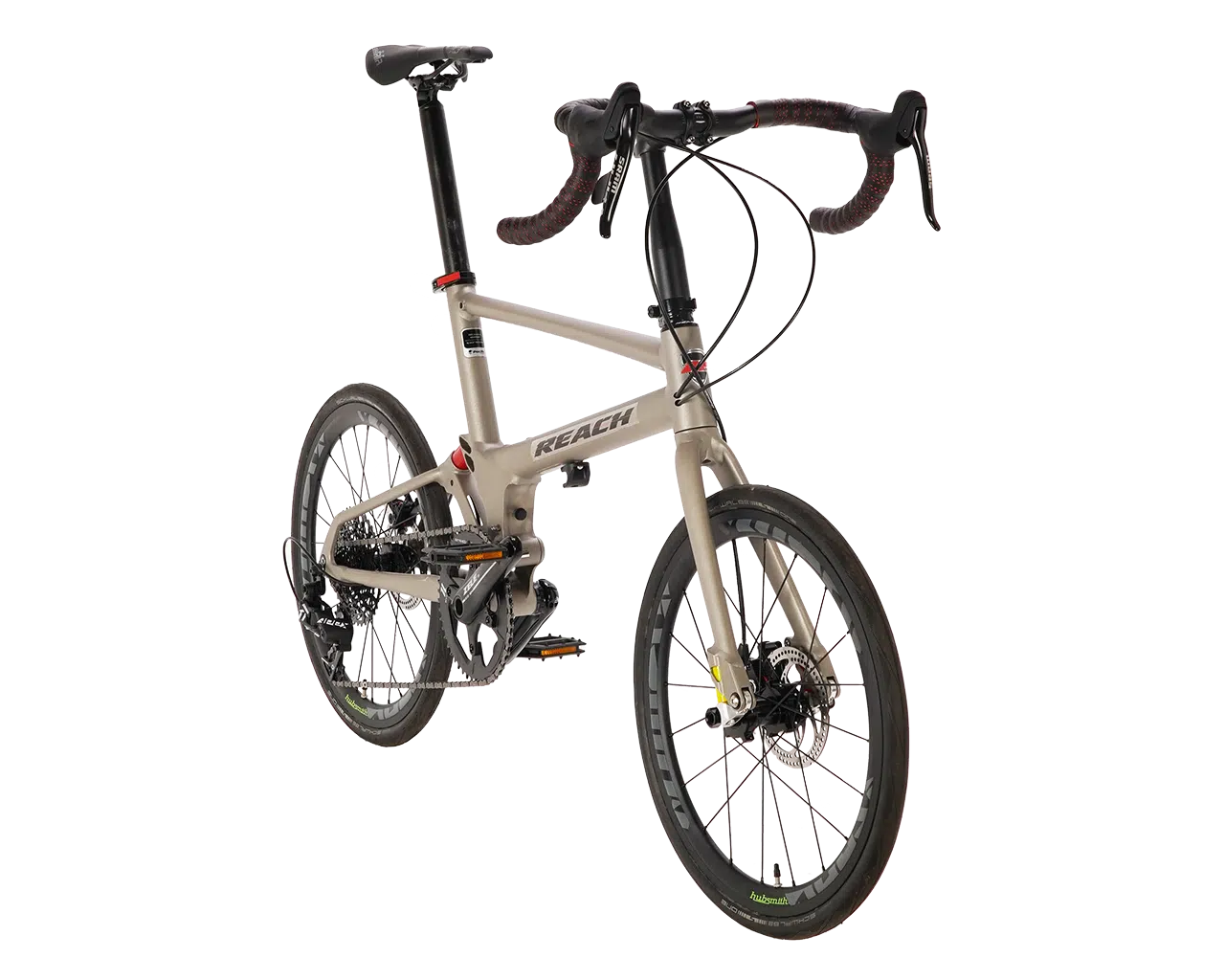

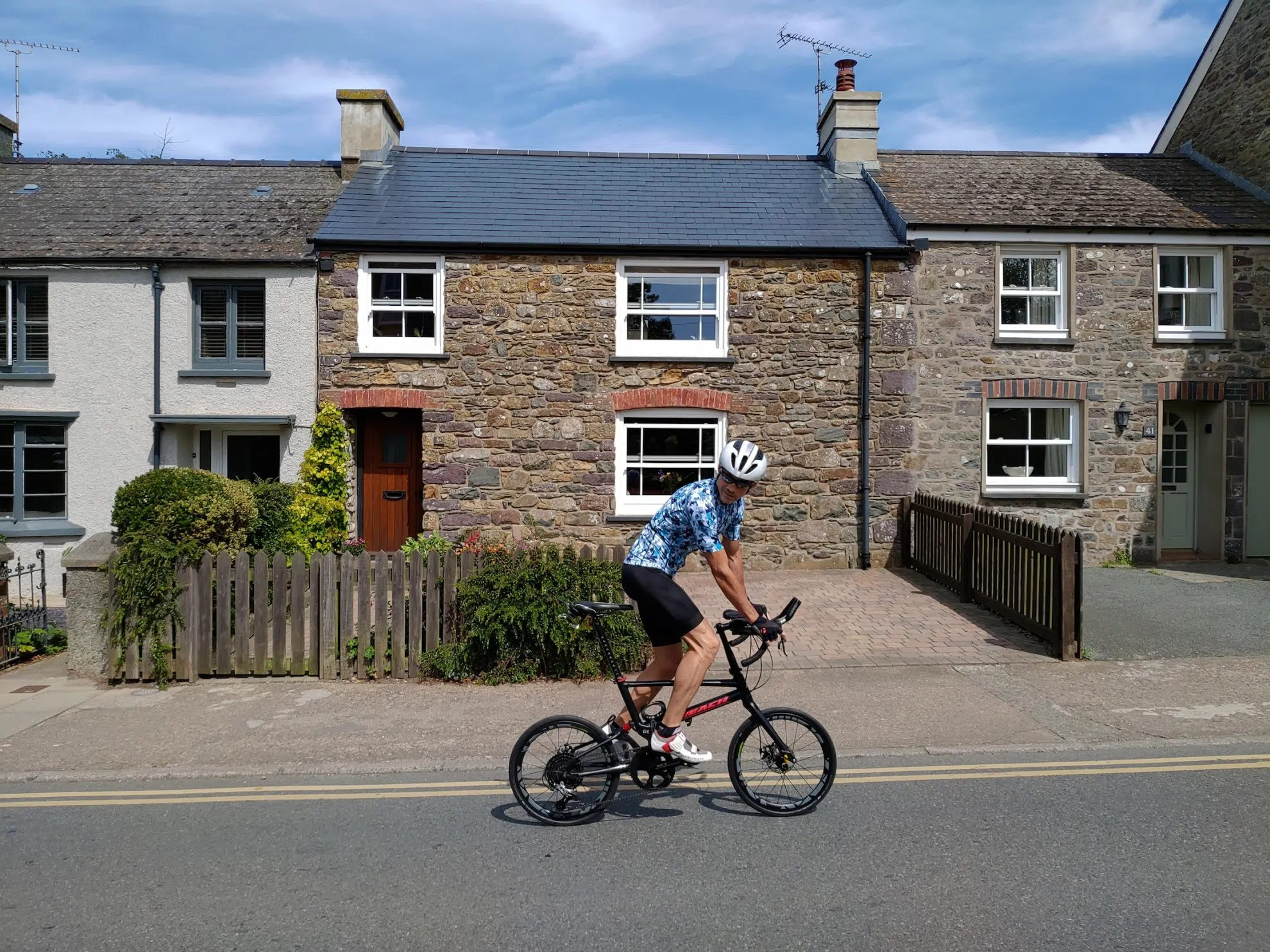

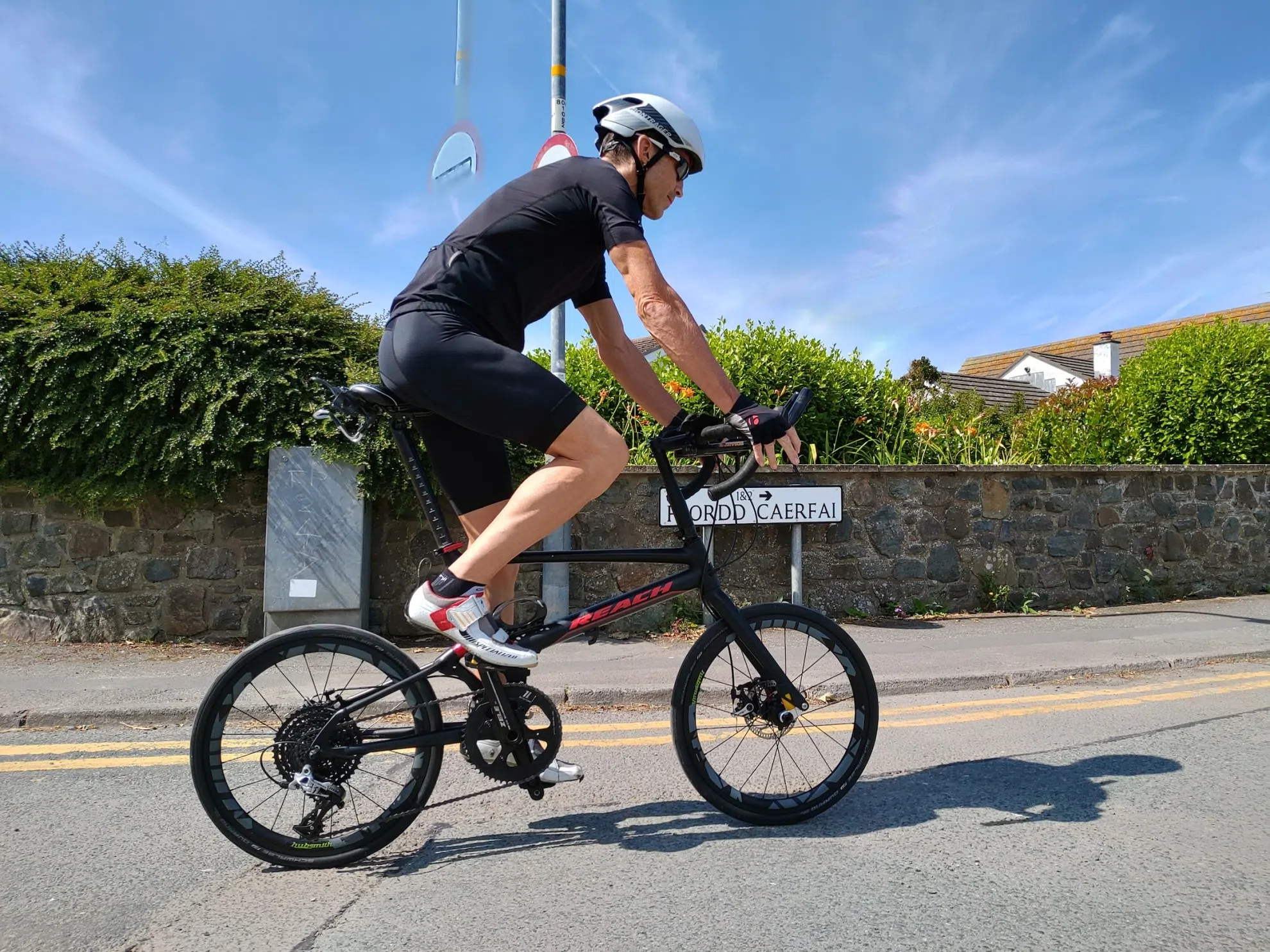

Designed for riders who embrace challenges, it delivers ultimate riding dynamics.
Weighing only 9.9 kg, its integrated rear triangle design positions the weight beneath the suspension system, effectively preventing power loss and achieving maximum pedaling efficiency.

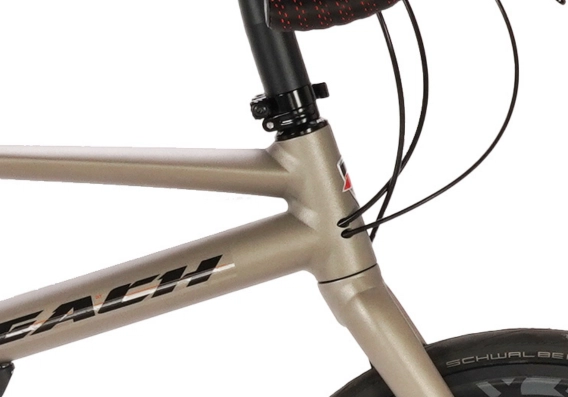

Flat Weld
REACH Front Dropout Open Type Upgrade Kit
Road Racing Settings
Equipped with a SRAM 11-speed (10-42T) drivetrain and Schwalbe Durano 20x1 1/8" (20-451) high-pressure tires, it delivers outstanding all-around performance.
Exclusive accessories
New Reach rear rack w/ trolley wheels
U DESIGN REACH Rear Shock Upgrade Kit
REACH Carrying Bag
REACH Front Dropout Open Type Upgrade Kit

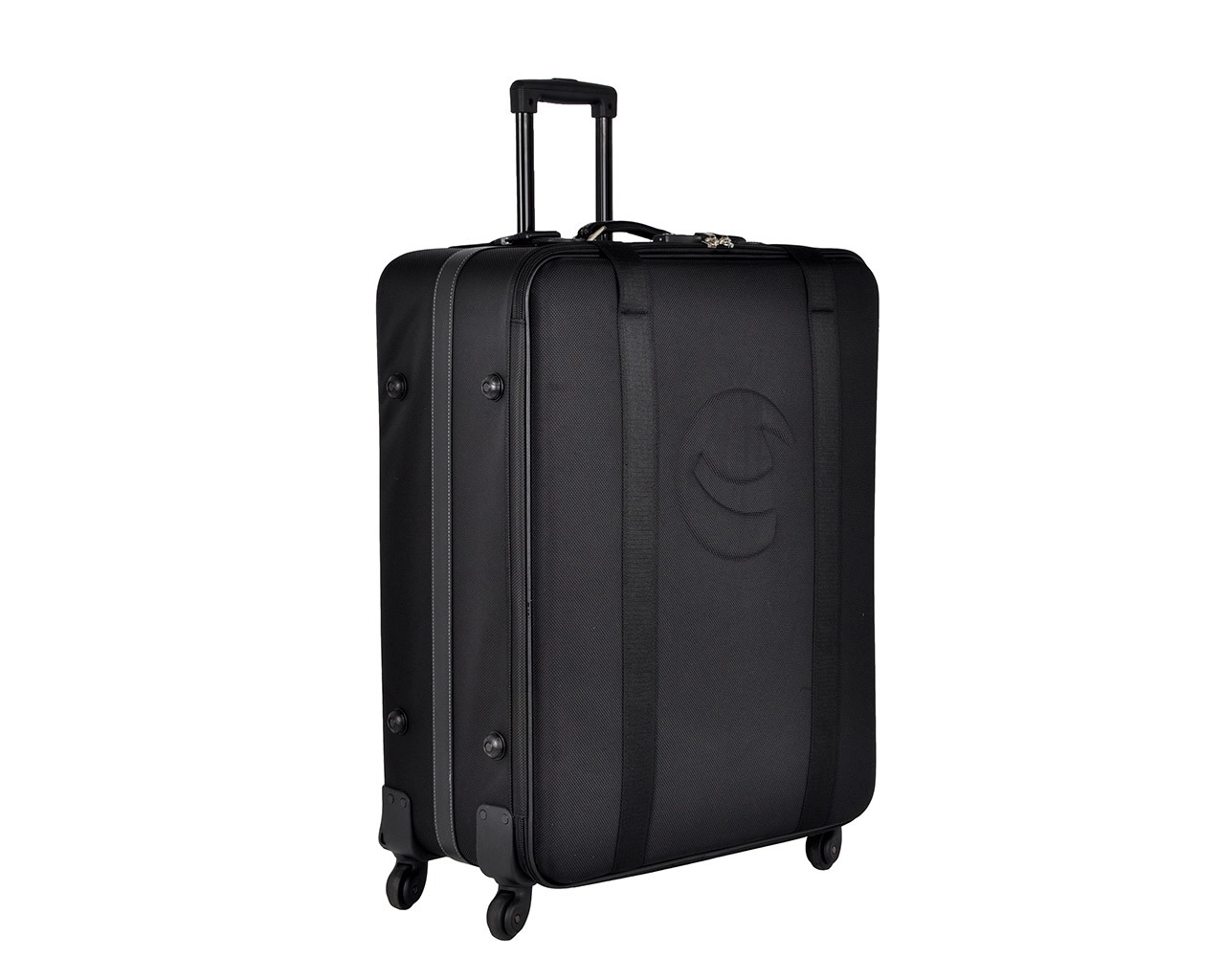

BIRDY/REACH Travel Case

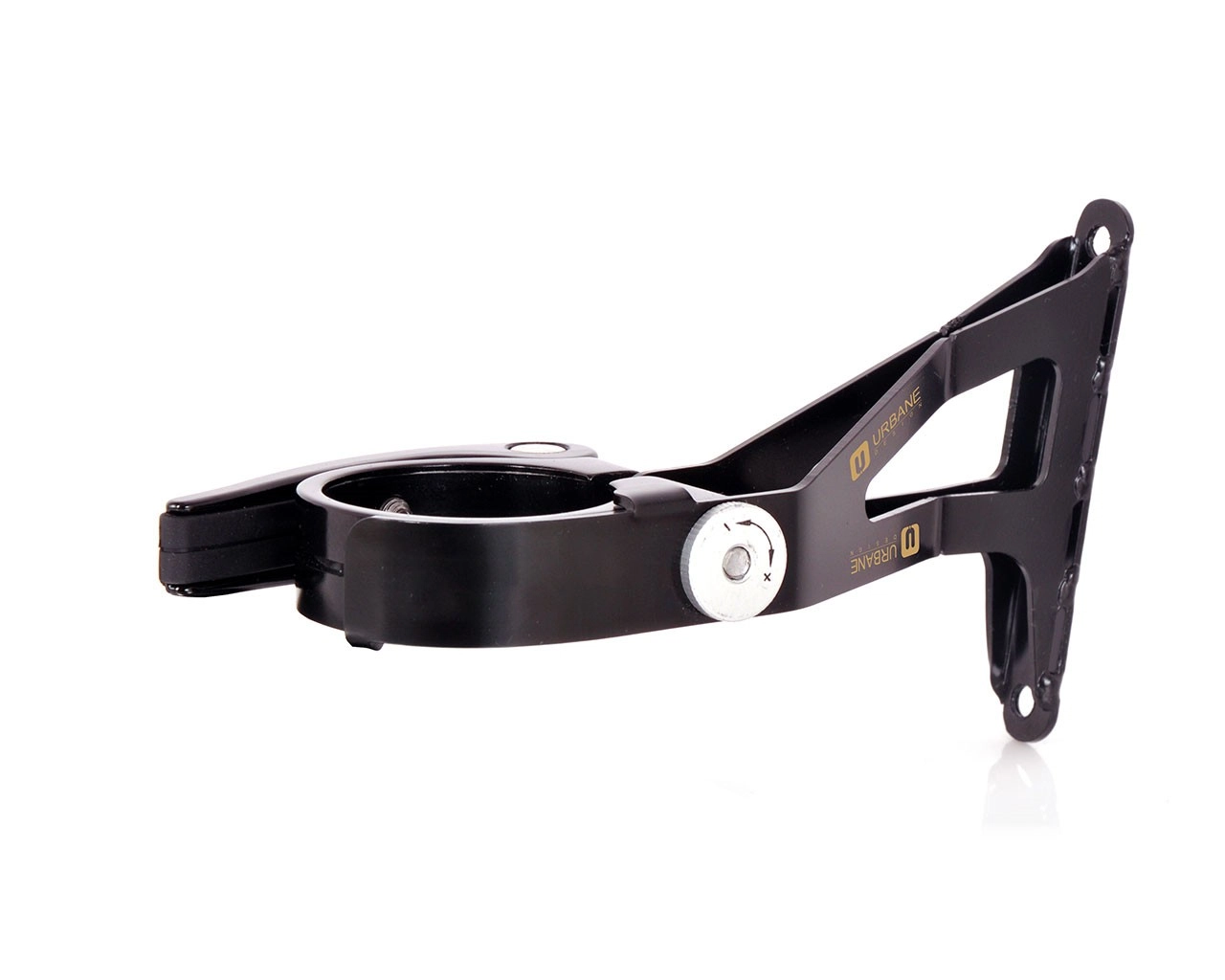

U DESIGN Multi-Purpose Adaptor
More REACH video
Specifications
Main Specifications
Color
Metallic Brown
Weight
9.9kg
Rider Height
145-185cm
Max. Load
110kg (incl. rider and luggage)
Size
Full Fold 74cm(L) x 40cm(W) x 56cm(H) (wheels detached)Fast Fold 99cm(L) x 21cm(W) x 60cm(H) (without removing rear wheel)
Frame
Frame
Aluminum Alloy 7005 w/ F&R suspension
Front Fork

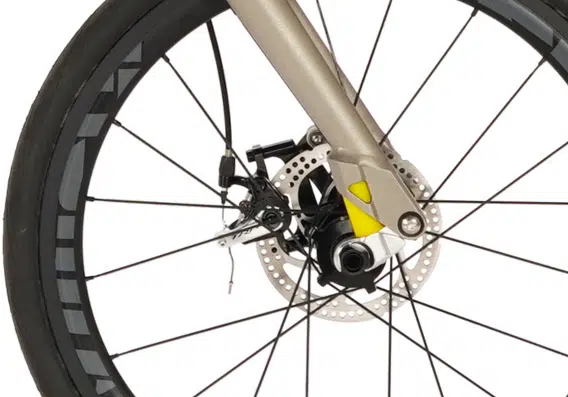

Trailing Link PU 15mm suspension travel, flat weld, open dropout with PU L: 90D(red), R: 80D(yellow)
Drivetrain
Derailleur
Sram RD APEX 1 LONG CAGE 11s
Shifter
L: nil, R: Sram APEX TRIGGER 11SPD RR BLK
Chainwheel
50T Alloy 7075 CNC black, 170mm crank for Sram 1x11sp, w/ crank arm guard for left crank, black
F: 34mm alloy rim anodized black w/Hubsmith HS-RS16F front hub 20H w/o QR, R: 34mm alloy rim anodized black w/Hubsmith HS-RS16R rear hub 20H for Sram-XX1 system w/QR
Hub
Integrated in rim, 15mm thru axle
Spoke
-
Tire
Schwalbe Durano 20x1-1/8" (28-451) 115PSI
Components

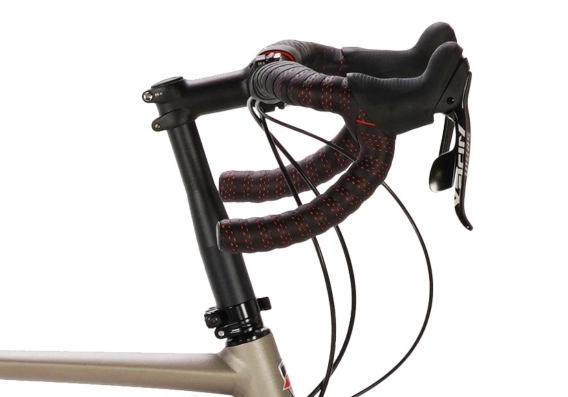

Handlebar
31.8X420mm AL6066
Stem
3D-forged 28.6x90mm OD:31.8mm sandblast black
Saddle
Selle Italia X3 Duro Tek cover FeC Alloy rails
Seatpost
AL7075 34.9x400mm hard anodized black
Pedal
Wellgo VP-197BS
Headsets
REACH Semi-Integrated Bearing Headset Top: 1-1/8” Bottom: 1-1/4” Color: Black
Stem Extension
REACH Exclusive Extended Seatpost 28.6 x 225.8mm Sandblasted Black
